Main Parameter
| Specification | Unit | XGQ-15F | XGQ-20F | XGQ-30F | XGQ-50F | XGQ-70F | XGQ-100F | XGQ-150F | XGQ-200F |
| Washing capacity | kg | 15 | 20 | 30 | 50 | 70 | 100 | 150 | 200 |
| Rolling container dimension | mm | Ф690×570 | Ф750×600 | Ф970×590 | Ф1060×810 | Ф1170×900 | Ф1290×970 | Ф1560×1035 | Ф1720×1230 |
| Motor power | Kw | 2.2 | 2.2 | 4 | 5.5 | 7.5 | 11 | 22 | 30 |
| Washing speed | rpm | 35 | 35 | 35 | 35 | 35 | 32 | 32 | 25 |
| Middle extract speed | rpm | 440 | 440 | 400 | 375 | 370 | 350 | 350 | 290 |
| High extract speed | rpm | 920 | 920 | 800 | 750 | 750 | 750 | 700 | 650 |
| Diameter of hot/cold water pipe | Inch | 0.98 | 0.98 | 1.57 | 1.57 | 1.57 | 1.57 | 1.97 | 1.97 |
| Steam pipe diameter | Inch | 0.59 | 0.59 | 0.79 | 0.79 | 0.79 | 0.98 | 1.26 | 1.57 |
| Compressed air pressure | mpa | 0.4-0.5 | 0.4-0.5 | 0.4-0.5 | 0.4-0.5 | 0.4-0.5 | 0.4-0.5 | 0.4-0.4 | 0.4-0.6 |
| Steam pressure | mpa | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Steam consumption | kg | 6 | 8 | 25 | 30 | 45 | 50 | 70 | 85 |
| Watert consumption | kg | 250 | 300 | 450 | 700 | 1150 | 1650 | 2000 | 2400 |
| Machine dimension | mm | 1050×1050×1520 | 1050×1050×1520 | 1420×1240×1620 | 1630×1330×1740 | 1720×1460×1800 | 1920×1680×1940 | 2300×1940×2180 | 2550×2250×2240 |
| Machine weight | kg | 550 | 610 | 1140 | 1600 | 2000 | 2400 | 4000 | 6500 |
Product advantage
1.Fully automatic, microcomputer-controlled. User friendly and easy programmable. 2. High quality stainless steel, good appearance, long life.

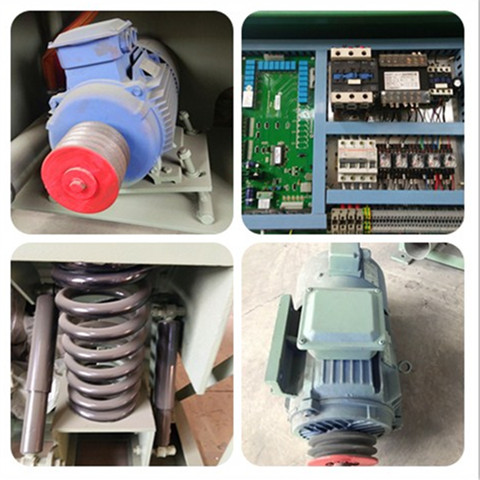

3. Equipment with mechanical suspension shock structure, low noise, high washing, need no excessive stable foundations.
4.It is driven by triangle belt which is duable and moves smooth with little shock.
5.Import
6.Hot/cold fill. Steam/electric heated. Remote lubricating.
6.Hot/cold fill. Steam/electric heated. Remote lubricating.
7.After dewatering,the rate of water lower than 55%.reduce drying & ironing energy consumption.If use groove type drying
8.High quality inverter system, easily realize washing and dehydration frequency stepless adjusting.
9. Safety door interlock system..Refuse to open the door when the machine is working.Packaging & Delivery
| Packing Detail: | Wooden Case Packing of Heavy duty washing machine |
| Delivery Detail: | Shipped in 15 days after payment |
