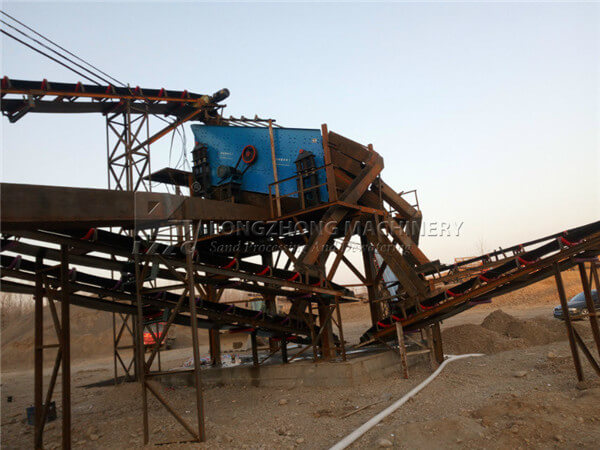

This Y series vibrating screen is vibrated by the circling motion. It is high efficient screen for filter materials into multiple grade according to the gravel size. For the compact structure and the convenient installation, it is the ideal screening device for prefilter of the feed materials before the primary crushing in the quarry site, it also can be used as separation and filtration solely. The vibrating screen adopts cylinder type eccentric shaft vibrator and partial block to adjust the amplitude. The materiel sieve drip line is long and more sieving specifications. The circular vibrating screen can also be used for production classifying in quarry, mine, construction, electricity, chemical industry,etc.
Working principle
1. The vibrating screen uses the motor to drive the eccentric shaft to make the screen body periodically along with the direction of vibration force.
2. The materials make circular movement on the screen to realize sieving.
Features
1. Vibrating screen YA is of several decks whose moving track is round.
2. The moving track of material is very long; the size of material can be separated into several specifications.
3. It adopts cylinder style inspiring vibrator device and eccentric shaft to adjust. It has the features of reliable structure, strong vibrating generation, high screening efficient, low noise, easy maintenance, safe performance, etc.
4. It is widely used in separating gravel and is also suitable for mining, construction material, transportation, energy, chemical industry and so on.
Tech specifications
| Model | Screen area (mm) | Sieve size (mm) | Max feeding size (mm) | Capacity (t/h) | Vibration frequency (Hz) | Double amplitude (mm) | Motor (kw) | Weight (kg) | Overall dimension (L×W×H) (mm) |
| YA1230 | 3.6 | 3-50 | 200 | 7.5-70 | 800-970 | 8 | 5.5 | 1750 | 3073*2030*1611 |
| 2YA1230 | 3.6 | 3-50 | 200 | 7.5-70 | 800-970 | 8 | 5.5 | 2340 | 3122*2050*2247 |
| 3YA1230 | 3.6 | 3-50 | 200 | 7.5-70 | 800-970 | 8 | 7.5 | 3050 | 3122*2050*2700 |
| 2YA1548 | 7.2 | 5-50 | 400 | 50-208 | 970 | 8 | 15 | 5330 | 4400*2610*2857 |
| 3Y1548 | 7.2 | 5-50 | 400 | 50-250 | 970 | 8 | 15 | 6070 | 5650*2528*3400 |
| 3YA1848 | 8.64 | 5-80 | 400 | 50-300 | 970 | 8 | 18.5 | 6930 | 5027*3100*3500 |
| 3YA1860 | 10.8 | 5-50 | 400 | 50-350 | 970 | 8 | 22 | 7700 | 6200*2240*1650 |
| 2YA2160 | 12.6 | 5-100 | 400 | 100-500 | 730 | 30 | 10200 | 6374*3821*3707 | |
| 2YA2460 | 14.4 | 5-150 | 400 | 150-700 | 730 | 37 | 12350 | 6374*4121*3707 |
