Anping County Xujie Wire Mesh Factory
Click to enlarge

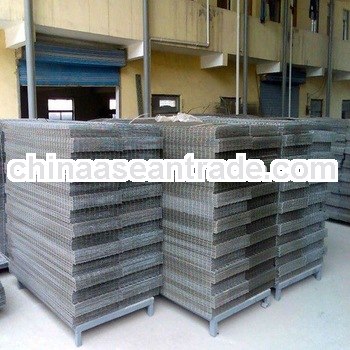

Construction welded wire mesh panel
Material: Stainless steel, Galvanized iron wire, Brass wire, Copper wire, Bronze wire, other stainless steel alloys on request, bronze. Specifications are according to customers requirements.
Feature: Good flexibility,unique texture, variety of colors
Length:1-8m
Width:0.5-3m
Wire diameter:3~10mm
Size:150x44cm
Color:green,red,as your mind
Usage: It is mainly used as estazolam mesh, partition mesh of light wall, it is also used to stop the roof, floor from cracking, etc.
Standard fixing detail: Inserted round bar with eye-bolts; clamping profile.
Standard width:2.5x1.25 m, 3x1 m, 4 m, 6 m, 8 m.
Packaging Detail: carton, pallet , or as per customer's requirement
Specification | ||||
Wire diameter (mm) | Hole size |
|
| |
Path distance (mm) | Weft spacing (mm) | Length (m) | Width (m) | |
10 | 100--500 | 30--300 | 1--8 | 0.5--3 |
9 | 100--500 | 30--300 | 1--8 | 0.5--3 |
8 | 100--500 | 30--300 | 1--8 | 0.5--3 |
7 | 50--200 | 20—300 | 1--8 | 0.5--3 |
6 | 50--200 | 20—200 | 1--8 | 0.5--3 |
5 | 50--200 | 10—200 | 1--8 | 0.5--3 |
4 | 30--200 | 10—200 | 1—8 | 0.5--3 |
2--4 | 25--100 | 10--100 | 1--6 | 0.5--3 |
