Brand:aa
Product detail:
Technical parameter
Drive Mode: gear drive and belt driveOperation
Mode: two or four grinding tanks working together
Maximum Loading Capacity: 2/3 of the ca Cement Small Ball Mill, Cement Lab Mill, Cement Mini Ball Mill pacity of milling tank
Feeding Granularity: soil material ≤10mm, other materials ≤3mmOutput
Granularity: Minimum 0.1um
Rotational speed ratio (revolution: rotation): 1:2 (0.4L,2L,4L);1:1.5(12L,20L)
Rotation Speed: 0.4L:0~600rounds/min; 2L:0~580rounds/min 4L:0~530rounds/min 20L:0-280 rounds/min
Speed Regulation Mode: variable-frequency-control-type and program-control-type stepless speed regulation; manual or automatic timed positive or negative revolving
Max. continuous operating time (full-load): 72 hours

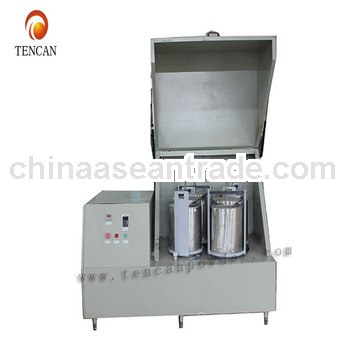

Types for Planetary Ball Mill
Model | Specification | Ball Milling Tank | Remarks | |
Spec (ml, l) | Quantity (Items/Set) (Mated with a number of milling balls) | |||
XQM-0.4L | 0.4L | 50~100ml | 4 mill tanks | Can be equipped with 50ml vacuum ball milling tanks |
XQM-1L | 1L | 50~250ml | 4 mill tanks | Can be equipped with 50~100ml vacuum ball milling tanks |
XQM-2L | 2L | 50~500ml | 4 mill tanks | Can be equipped with 50~250ml vacuum ball milling tanks |
XQM-4L | 4L | 50~1000ml | 4 mill tanks | Can be equipped with 100~500ml vacuum ball milling tanks |
XQM-8L | 8L | 0.5-2L | 4 mill tanks | Can be equipped with250~1000ml vacuum ball milling tanks |
XQM-12L | 12L | 1-3L | 4 mill tanks | Can be equipped with 500~2000ml vacuum ball milling tanks |
XQM-16L | 16L | 1-4L | 4 mill tanks | Can be equipped with 500~3000ml vacuum ball milling tanks |
XQM-20L | 20L | 1-5L | 4 mill tanks | Can be equipped with 1000~4000ml vacuum ball milling tanks |
XQM-40L | 40L | 4-10L | 4 mill tanks | Can be equipped with 3000~9000ml vacuum ball milling tanks |
XQM-60L | 60L | 6-15L | 4 mill tanks | Can be equipped with 5000~13000ml vacuum ball milling tanks |
XQM-100 | 100L | 1~25L | 4 mill tanks | Can be equipped with 9000~20000ml vacuum ball milling tanks |
...
