Product detail:

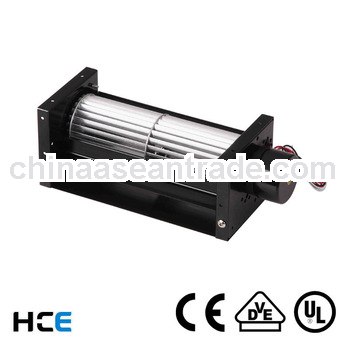

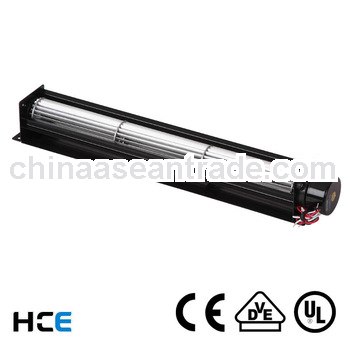

Exhaust Ventilator
| Product Code Instruction | PA | 60 | 180 | AC | Y | 1097 | ||||
| housing type | impeller diameter (mm) | impeller length (mm) | motor type | motor position (Y-right / Z-left) | HCE serial numbers | |||||
| Performance | 1.high quality, competitive price 2.low noise, min vibration, high temperature resistant 3.long-life with wide range models | |||||||||
| Applications | Heating:electric fireplace, bath heater,electric heater,warm air blower, floor heating heater, oven,personal or process drying,etc Cooling:refrigerator,freezer,aircondition fan unit,air curtain,wine cabinet,mini air cleaner, photo copyer, projector, sun bed, etc Ventilation:conservatory ventilation,heat recovery,etc | |||||||||
| Company basic information | ISO,ERP managed / 20,000 square metres/150workers, 40 stamping machines/ 3 Assembly lines, Own tool workshop and own motor factory, OEM,ODM is prefered | |||||||||
| Capacity | 2 million pcs/year (8000/day) | |||||||||
| Payment terms | T/T,L/C | |||||||||
| Lead time | 20-30 days | |||||||||
| HCE PB-40DC Series | ||||||||||
| Spec Grade | Rated voltage (V) | Rated Current (A) | Wind speed (M/S) | Speed (r.p.m) | Static pressure (mmaq) | pa | Maximum Air Flow (m³/h) | CFM | Noise (dB) | Weight (g) |
| PB-40090DC-Y284 | 24 | 0.12 | 3.3 | 3600 | 3.5 | 34.2 | 25.6 | 15.1 | 33 | 236 |
| PB-40150DC-Y1087 | 12 | 0.25 | 4.5 | 2500 | 2.4 | 23.5 | 57 | 33.6 | 32 | 335 |
| PB-40150DC-Y247 | 24 | 0.16 | 6.5 | 3400 | 3.5 | 37.1 | 82 | 48.4 | 42 | 245 |
| PB-40190DC-Y1051 | 12 | 0.26 | 5 | 2600 | 2.5 | 24.4 | 78 | 46 | 33 | 367 |
| PB-40190DC-Y285 | 24 | 0.19 | 6 | 3200 | 3.4 | 33.2 | 93 | 54.9 | 32 | 367 |
| PB-40250DC-Y1145 | 12 | 0.3 | 4 | 2200 | 2.2 | 21.5 | 79 | 46.6 | 22 | 415 |
| PB-40250DC-Y286 | 24 | 0.23 | 5.8 | 3000 | 4 | 39.1 | 115 | 67.9 | 45 | 420 |
| PB-40290DC-Y1056 | 12 | 0.22 | 3.5 | 1900 | 1.8 | 17.6 | 83.2 | 49.1 | 36 | 458 |
| PB-40290DC-Y408 | 24 | 0.19 | 3.9 | 2200 | 2.9 | 28.3 | 90 | 53.1 | 36 | 450 |
| PB-40350DC-Y1020 | 24 | 0.28 | 4.8 | 2600 | 2.5 | 24.4 | 130 | 77 | 44 | 479 |
| PB-40420DC-Y1067 | 12 | 0.4 | 3.3 | 1800 | 2.4 | 20.5 | 110 | 64.9 | 45 | 563 |
| PB-40420DC-Y1150 | 24 | 0.16 | 3.3 | 1800 | 2.1 | 20.4 | 110 | 64.9 | 45 | 554 |
