Product detail:

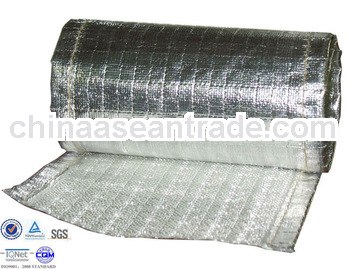

Polyurethane (PU) coated fiberglass fabrics
Suntex provides specially formulated polyurethane polymer coated fiberglass fabrics which can withstand temperature up to 1800C for short bursts. It has very good abrasion resistance and good resistance to oils and solvents.
Suntex provides one-sided/double-sided polyurethane coated fiberglass fabrics with many colors and widths. It has excellent fire resistance and good mechanical properties for make-up.
Main applications:
-Fabric air distribution ducts.
-Fabric ductwork connector.
-Fire doors & Fire curtains.
-Welding/fir blankets.
-Other fire and smoke control systems.
DESCRIPTION |
| ||
GF660C-PU113-2015 is a woven fiberglass fabric with a specially formulated polyurethane aluminum polymer which provides a heat reflecting surface as well as other properties for the manufacturer of welding blanket and fire control systems. Other applications are insulation covers where GF660C-PU113-2015 can be used as an attractive alternative to foil faced laminates for less demanding end uses. | |||
| |||
BASE FABRIC | Base fabric style No. GF660C | ||
| (Metric) | (English) | Test methods |
Weave | 8H Satin | 8H Satin |
|
Yarn |
|
|
|
Warp | CC9 33 1*6 | ECG 150 1/6 |
|
Weft | CC9 33 1*6 | ECG 150 1/6 |
|
Construction |
|
|
|
Warp | 16.5 ± 1 ends/cm | 42 ± 2 ends/inch |
|
Weft | 14.5 ± 1 picks/cm | 37 ± 2 picks/inch |
|
Weight | 660 ± 30 g/m2 | 19.4 ± 0.9 oz/yd2 | ASTM D3776-96 |
Thickness | 0.62 ± 0.06 mm | 0.024 ± 0.002 inch | ASTM D1777-96 |
|
| ||
COATED FABRIC | Coating style No. PU113-2015 | ||
Coating | Polyurethane with grey aluminum pigments on one side. | ||
Weight | 690 ± 30 g/m2 | 20.29 ± 0.88 oz/yd2 | ASTM D3776-96 |
Thickness | 0.63 ± 0.05 mm | 0.0248 ± 0.0019 inch | ASTM D1777-96 |
Color | Silver |
| |
Flame resistance | M0 approval |
| NF 92507 |
Temp resistance | Glass fabric up to 5500C (10000F) Polyurethane coating up to 1800C (3500F) | ||
Application for thermal insulation:
Application for welding protection:
