Brand:LZZG

Description:This Y series vibrating screen is vibrated by the circling motion. It is high efficient screen for filter materials into multiple grade according to the gravel size.

Origin:China Henan

Model:3YA1230

FOB:perSets5,000--18,000USD

Port:Shanghai, China

Payment Terms:L/C

Supply Time:Week

Packaging Details:Standard packing

Product detail:  Brief introduction

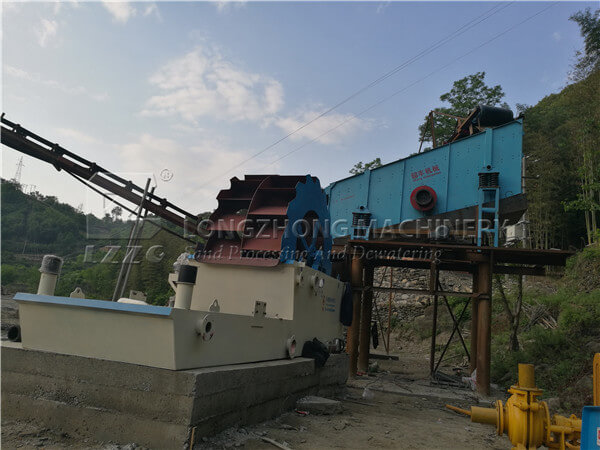

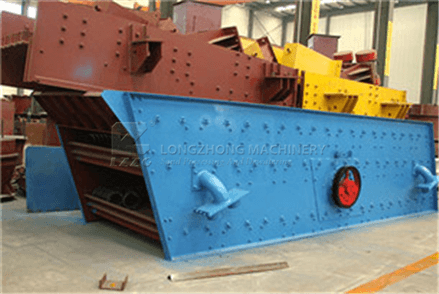

This Y series vibrating screen is vibrated by the circling motion. It is high efficient screen for filter materials into multiple grade according to the gravel size. For the compact structure and the convenient installation, it is the ideal screening device for prefilter of the feed materials before the primary crushing in the quarry site, it also can be used as separation and filtration solely. The vibrating screen adopts cylinder type eccentric shaft vibrator and partial block to adjust the amplitude. The materiel sieve drip line is long and more sieving specifications. The circular vibrating screen can also be used for production classifying in quarry, mine, construction, electricity, chemical industry,etc.



Working principle

1. The vibrating screen uses the motor to drive the eccentric shaft to make the screen body periodically along with the direction of vibration force.
2. The materials make circular movement on the screen to realize sieving.



Features

1. Vibrating screen YA is of several decks whose moving track is round.
2. The moving track of material is very long; the size of material can be separated into several specifications.
3. It adopts cylinder style inspiring vibrator device and eccentric shaft to adjust. It has the features of reliable structure, strong vibrating generation, high screening efficient, low noise, easy maintenance, safe performance, etc.
4. It is widely used in separating gravel and is also suitable for mining, construction material, transportation, energy, chemical industry and so on.

Tech specifications

Model	Screen area (mm)	Sieve size (mm)	Max feeding size (mm)	Capacity (t/h)	Vibration frequency (Hz)	Double amplitude (mm)	Motor (kw)	Weight (kg)	Overall dimension (L×W×H) (mm)
YA1230	3.6	3-50	200	7.5-70	800-970	8	5.5	1750	3073*2030*1611
2YA1230	3.6	3-50	200	7.5-70	800-970	8	5.5	2340	3122*2050*2247
3YA1230	3.6	3-50	200	7.5-70	800-970	8	7.5	3050	3122*2050*2700
2YA1548	7.2	5-50	400	50-208	970	8	15	5330	4400*2610*2857
3Y1548	7.2	5-50	400	50-250	970	8	15	6070	5650*2528*3400
3YA1848	8.64	5-80	400	50-300	970	8	18.5	6930	5027*3100*3500
3YA1860	10.8	5-50	400	50-350	970	8	22	7700	6200*2240*1650
2YA2160	12.6	5-100	400	100-500	730		30	10200	6374*3821*3707
2YA2460	14.4	5-150	400	150-700	730		37	12350	6374*4121*3707
